My interest in truffle cultivation economics led to a broader investigation into fungal growth patterns. I discovered that while some mushrooms can be readily cultivated in controlled environments, truffles and other specialized fungi present unique challenges—largely due to their complex growth mechanisms and environmental dependencies.

During my research, I encountered the groundbreaking 'Neighbour-Sensing Model' developed by David Moore and Audrius Meskauskas, which mathematically unifies diverse fungal morphologies through parameter tuning. While the model was theoretically elegant, the original implementation was a legacy Java application with limited compatibility and accessibility. Modern researchers and enthusiasts had no practical way to utilize this powerful simulation framework.

This presented a significant opportunity: to reimplement this sophisticated mathematical model in a modern, accessible programming environment that would allow for interactive exploration of the parameter space governing fungal morphogenesis. The goal was to create not just a functional replica, but an enhanced platform that would facilitate visualization, animation, and experimentation with hyphal growth patterns.

I approached this project by first thoroughly understanding the mathematical foundations of the Neighbour-Sensing Model. This required studying the differential equations and probabilistic frameworks that govern hyphal growth, branching patterns, and tropism (directional growth in response to environmental stimuli).

The core principles of the model include:

After obtaining the original source code and a copy of 'The Algorithmic Fungus' directly from the authors, I analyzed the implementation details and identified the critical algorithms that would need to be translated to Python. Rather than a direct port, I re-architected the code to take advantage of modern programming paradigms, numerical libraries, and visualization capabilities.

The implementation focused on creating a flexible, modular system that could accurately reproduce the mathematical model while providing enhanced visualization and interaction capabilities. The core components included:

The Python implementation leveraged several scientific and visualization libraries:

A key technical challenge was balancing computational efficiency with biological accuracy. As the number of hyphal segments grows exponentially during simulation, the neighbor-sensing calculations become increasingly intensive. I implemented spatial partitioning techniques to reduce the computational complexity from O(n²) to approximately O(n log n), enabling longer and more complex simulations on standard hardware.

The simulator's core algorithm implements the Neighbour-Sensing Model through several interconnected computational processes:

The key parameters that can be tuned to produce different fungal morphologies include:

By adjusting these parameters, the simulator can reproduce a wide range of fungal morphologies, from the radial networks of soil-dwelling mycelia to the organized fruiting bodies of mushrooms and the complex subterranean structures of truffles.

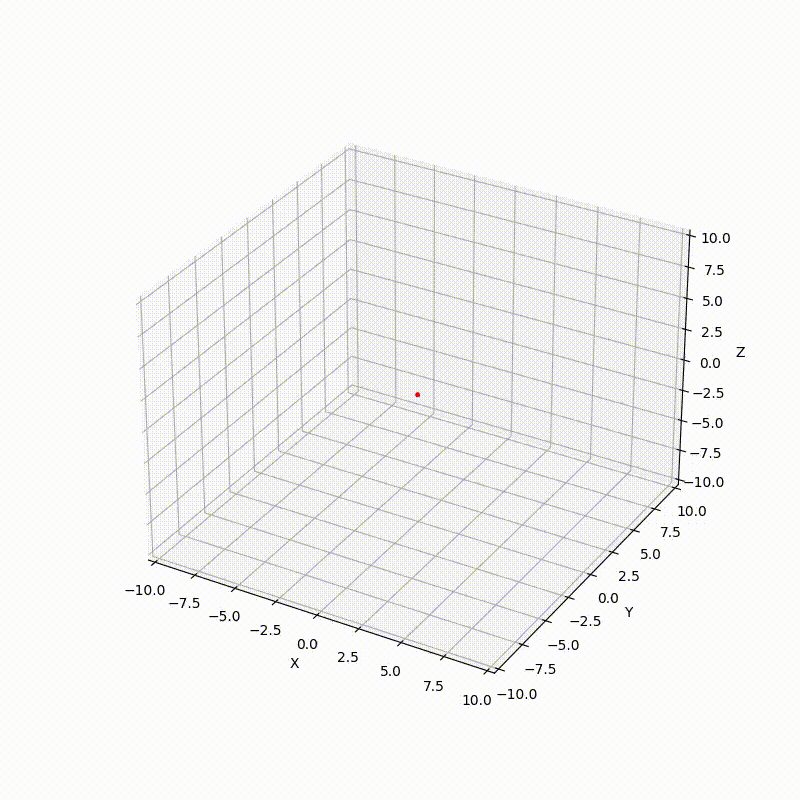

The Python implementation successfully reproduced the key morphological patterns described in the original research, while adding enhanced visualization capabilities and improved parameter tuning interfaces. The simulator can generate animations showing the dynamic growth process, providing insights into how complex structures emerge from simple rules.

Several notable achievements of the implementation include:

The most striking outcome was observing how slight variations in parameter values could produce dramatically different growth patterns, reaffirming the unified mathematical theory proposed by Moore and Meskauskas. This demonstrates that the remarkable diversity of fungal forms in nature can emerge from a relatively simple set of growth rules modified by environmental factors.

The fungal growth simulator has potential applications across several domains:

For my original interest in truffle cultivation, the simulator offers insights into the complex growth requirements that make truffles challenging to farm. By manipulating environmental parameters like soil conditions (represented as tropism factors) and resource availability, the model illustrates why truffles develop their distinctive morphology and why they form such specific relationships with host trees.

While the current implementation successfully recreates the core functionality of the original Neighbour-Sensing Model, several avenues for enhancement remain:

The most promising direction would be extending the model to incorporate interactions with plant roots and soil chemistry, which could provide specific insights for truffle cultivation. By simulating the symbiotic relationships between fungi and trees, the model could potentially help optimize conditions for commercial truffle production.

This project not only provides a valuable tool for fungal growth visualization but also serves as a fascinating case study in how complex biological structures can emerge from relatively simple mathematical rules—a testament to the elegant complexity of natural systems.
